Drill Machine – Types of Drills, Applications of Drill Machines
Drill Machine
Drill is a machine tool used for drilling the holes in solid equipment like metal and wood with drill bit or driver bit. Drills are used in wide variety of applications in metalworking, constructions and woodworking industries. The small drill is used for our domestic requirements to make holes on wall and materials. These are presented in different sizes and power capacities. Drill is one of the oldest handy tools used from very foundation of the industrial era.
Types of Drills
Varieties of drills are pretend as per the industrial requirements. They are categorized based on special parameters like manual drills and automatic drill machines. Manual drills are referred as hand milled drills used with hand force on the device/material to drill a hole. Physical drill variants are Bow drill, Gimlet, Breast drill and push drill etc. These are mechanical with electricity or packed in air known as electronic drill and pneumatic drill respectively. Drilling works is carried out at different locations with various types of drills including construction drill, wells drill, thermal drill etc. All drills have special applications of drilling from little to larger size hole.
Pistol grip drill is normally used in our daily work. Right angle drill is used in plumbing and electrical mechanism. Hammer drill is likes to electrical drill with adding of hammer action on the same device. Rotary hammer drill is equipped with rotation device used for drilling in solid constructions. Cordless drills with natural rechargeable battery power are used where electrical supply is not reachable for drilling. Cordless drills consume high power. Thus need more spare batteries on charge throughout the drilling work to replace effectively on discharge of installed batteries?

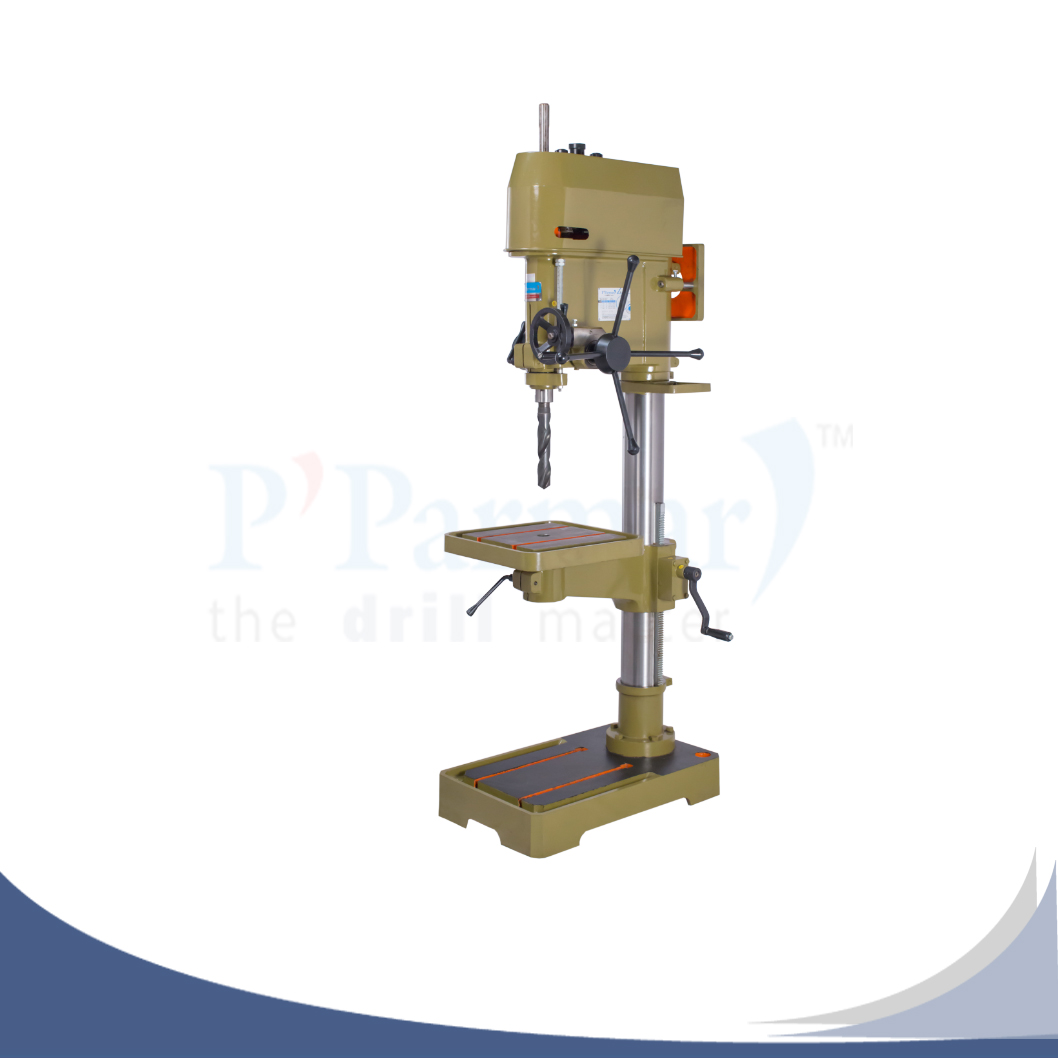

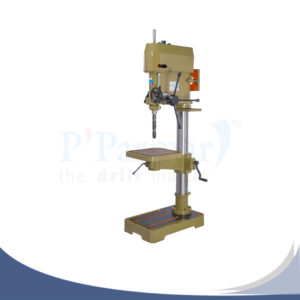

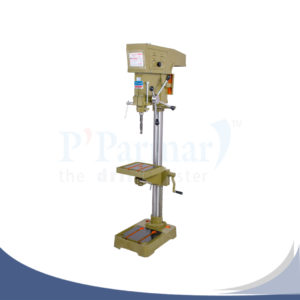

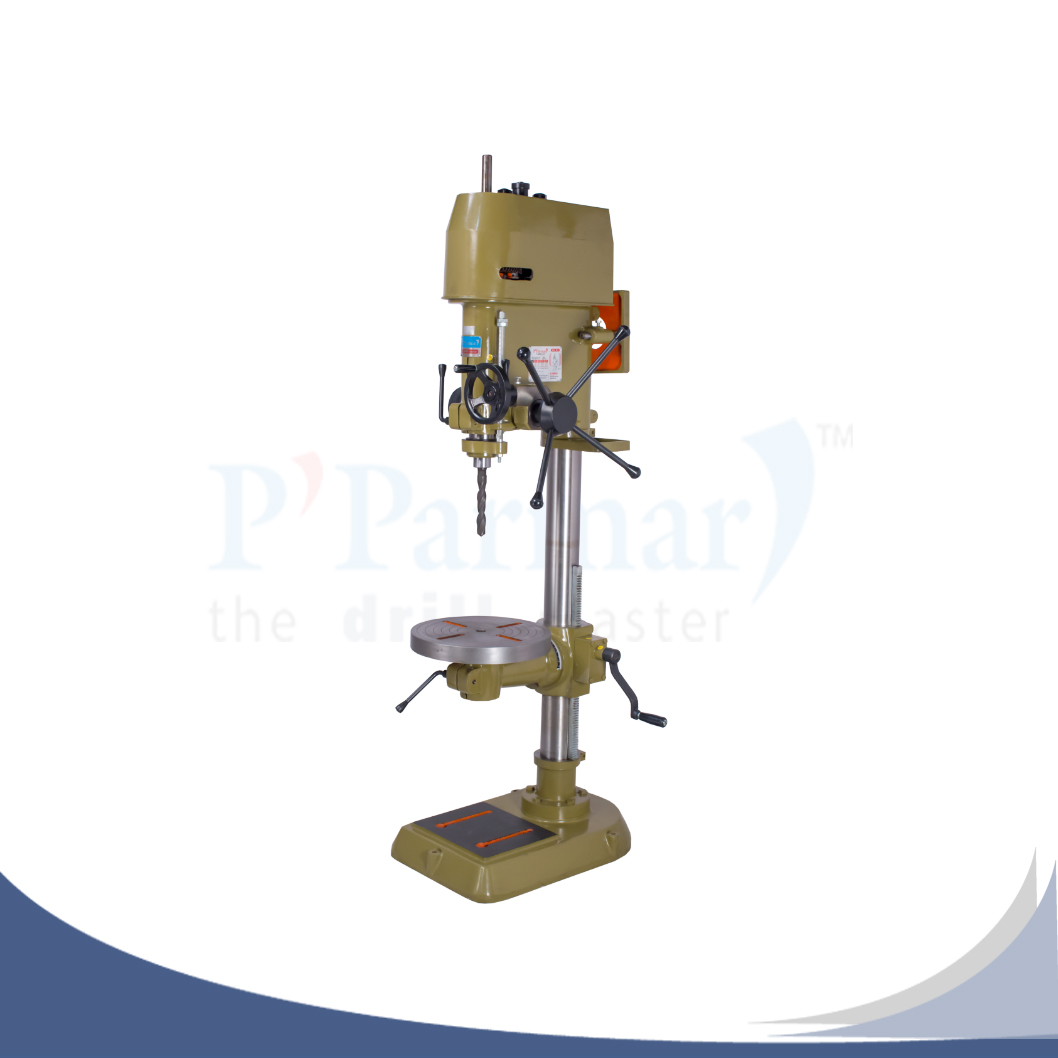

Drill Press/Pillar Drill Machine
Drill press is the drill machine that can be position mounted or fixed with floor or workbench through bolting. Drill press also well-known as pillar drill consist base, column, table, drill head and spindle. This bench drill use induction motor provides to carry out the drilling process faster with little or larger drill bit. Drill press is quite lighter and capable for operator compare to hand drill. The clamping of drill press makes the suitable positioning for precision and accurate drilling operation.
Radial Drill Machine
Radial drill machine with geared beginning put up press on huge area without relocation the work piece. Radial arm drill press is pretend with several dimensions of drill head and unreliable base plate. Different width and size of drill bits are used here to drill from small to large size holes. These are very much popular and commonly used in automotive, workshops and garages.
Drilling cum Milling Machine
Drilling cum milling machine is used for both drilling and milling process. This lighter machine is having great choice of milling capabilities to save the space including the added functionalities of determining the materials.
Applications of Drill Machines
The basic function of drill machine is to construct hole of different size in solid materials. Different drills are used for industry particular applications. Drill rigs are used to drill water wells and oil wells. Hand drills are used for screwing and fastening. Electrical pistol grip drill is used in general masonry workings by builders, electricians and plumbers. Hammer drill is particularly used by carpenters to drill and fix the wooden parts.
Cordless drills are useful where electrical provide is not feasible to get for drilling. Pillar drill machine (also referred as drill press) is used in marketable applications where it required bulk manufacture of drilled materials in a selection of size and shape like metal sheets, plastic, wood, glass and physical construction applications. The orientation based power supply is easily controlled in drill press to increase or decrease the drilling speed and capacity.
The capability of drill press differs with pillar diameter, spindle nose, spindle travel, spindle speed and electronic motor used in the machine. These are extensively used in automobile, printing and engineering field to increase the constancy and tensile power of the machine with efficient moving out to the resistive materials with quality performance. Milling cum drilling machine is broadly adopted in the industries where required mixing and grinding of solid and liquid substances.
Drill Machine – Types of Drilling Machines, Applications of Drilling Machine
Drill Machine
It is used for drilling holes in special materials. It’s also called as drill press used in drilling various sizes of holes in any outside area and to a precise depth. They have innovative changed the industrial work of every kind to make the complex task very simple. Fine quality equipments with latest technology and standards have made the machining work more precise and perfect. These are in high demand transversely the world due to effective correctness equipment work and cost efficient price and maintenance. There are varieties of drilling machines for different applications.
Types of Drilling Machines
Drill machines are categorized as pillar drill machine, radial drill machine and drilling cum milling machine. Pillar drill machines have inflexible structure and vibration free machining. 13-20-25mm pillar drill machine and 38-40mm pillar drill machine are used in different industries universal. RAM from special alloy steel pipe of more width gives more power bearing capacity. These are very common and parts are also simply available. These are available in a range of proportions of drill head, base plate and capacity.
All geared radial drill machine comes in several models with highest degree of accuracy. All geared drilling machine comes in various capacities for drilling various radius ranges. The bearing shafts and main assemblies are force lubricated and gears are induction hardened and the spindle is hardened and ground. Radial drills are of three types. One is plain radial drill where the drill spindle is for all time vertical and may not swing over any point of the work. Drilling cum milling machine is two-in-one working machine works for drilling and milling operations.
Applications of Drilling Machine
Drill machine made from quality materials, using advanced technology have low maintenance and high performance with higher accuracy machining work. A variety of models provide convenience and flexibility. These machines are used in industries like manufacturing, metalworking, woodworking, masonry and construction as well. Apart from drilling holes, drill machine is featured of performing a variety of tasks like tapping, spot facing, reaming, counter sinking and counter boring etc. Tapping is a procedure to hole in pipelines under pressure. Spot facing application is furnishing finished circular surfaces around the top of a hole for seating the washer or the bolt head.
Pillar drill machine is used to drill holes in concretes, rocks, heavy duty machines, metal sheets, plastic, wood, glass and other material. It has durable bits which extends the efficiency and performance in heavy load conditions. The height and sharp assembly of the drilling machine can also be familiar.
Radial drill machine is machinery, where drilling head is mounted slip the length of a radial division which can be rotated, raised or lowered on a vertical mast to adjust the place of the drill above the work piece. The radial drill machine is much known for its precision, correctness and efficiency. Radial drills are designed for very precision and accurate work ensuring smooth rotation of column and avoid angular deflection of spindle axis. It is of very much robust construction for heavy duty drilling. Minute inspection with accuracy is required while operating radial drilling machine. The drill table is placed on a solid foundation to hold the heavy work. When the portion of work is secured on the drill table, the drill spindle may be placed over any part of the work without moving the latter.
Drilling cum milling machine is used for both drilling and milling purpose on the work piece. PARMAR DRILL MACHINE Tools is one of the prime machine tools manufacturers in India provides all types of drilling machine and other machinery tools with logical quote.
Importance of High Precision Drilling Machines In Metal Industries And Other Industries
Nowadays, high accuracy drilling machines are regarded as one of the most important tools in the metal industry. This is because precise drilling is always required for a vast number of manufacturing processes that are related to different types of metals. It is primarily utilized for holes of precise depths and various dimensions, on a variety of surfaces.
Moreover, It is also considered as one of the multi-purpose equipment’s; as it also has the skill to execute a number of functions. This includes counter-boring, countersinking, reaming, spot-facing, tapping, etc. The highly accurate ranges of devices that are now willingly available in the market include the upright drilling, the radial drilling machine, and the special purpose equipment. Actually, the various units perform the same basic operations. However, there are some particular tasks which can be done more precisely and very easily by a particular unit.
It normally utilizes one or the other type of drill bit to drill very precise holes in a specific material. Besides this, it can also be utilized for bonding two pieces of materials together with the help of some kind of fastener. As a result, these are now used for a broad diversity of accurate metalworking tasks across the globe. Further, when the tool is utilized for placing fasteners; it simultaneously drills holes that are extremely precise, through the work piece while installing the fastener.
Drilling Machines
Basically drilling machines enables us to drill both particularly small holes and very large holes. It is a fact that the equipment has helped to easily perform lots of composite tasks. Moreover, they have automated the manual process and also changed the way of executing a variety of industrial tasks. Besides this, the latest models are now willingly available in different regions of the world. Nowadays, these extremely precise equipments are manufactured using standard quality materials. Further, they even integrate the up to date technology as well as the recent development in the engineering field.
Additionally, the modern range is fully involuntary and totally computer controlled. Actually they are now accessible in a variety of specifications, and can also be supplied as per the customized needs of the clients in the national as well as international markets. As a result, there is a huge demand throughout the world. Moreover, these machines have also gained huge popularity, because they can easily drill very accurate holes on various metals. Additionally, It is at the moment used for unusual kinds of machining works. Hence, they can be applied for a diversity of purposes in the metal industry for highly precise tasks. Moreover, the other applications include perfect holes for work related to building structure basics and pillar holing; extract work, boulder splitting, leveling work, etc.
Application of Radial Drill Machines In The Pharmaceutical Industry
Introduction
Radial drilling machine is one of the most adaptable equipment used in manufacturing and manufacture centers. They basically punch and ream through or blind holes on work section. They are also used to expand already punched holes. A protruding arm characterizes this equipment. On this arm, the spindle is attached so that vertical and horizontal activities can be attained. In addition, the large radial arm where the spindle is attached swings, move vertically as well as make radial progress. These activities enable the machine to perform operations on complex and odd twisted work pieces. They are consequently more adaptable as compared to the pillar drill. The spindle can be twisted and swiveled and this makes it possible to bore through work pieces inclined at an angle.
Application in pharmaceutical machines
The production of medicine relies greatly on complicated equipment that is used to manufacture process and pack medicines. The main devices used to manufacture drugs include reactors, bio-reactors, agitator vessels, mixers, homogenizes, fermentation equipment, pressurized tanks, storage space tanks, centrifuges and other equipment. These are mainly affected from aluminum and cold rolled stainless steels. In addition, extra devices are used to shift and pack the liquid and solid medicines in containers.
The manufacture of pharmaceutical machinery greatly relies on devices such as drills. They bore opening on parts which assist in binding using bolts and rivets. Equipment used to manufacture drugs has complicated shapes with numerous bores used to fasten the parts to others as well as to the production lines. The boring process requires versatile and automated radial drills that can make vertical and inclined holes. The radial projections agree to this device to make a variety of complex openings on the parts being manufactured. These devices also allow for accuracy and computerized control that results to accurate and precision drilling of holes.
Application in medicine packaging
Medicine manufacturing industries have several equipment’s used to process, transport, divide and pack medicines. Large ranges of devices are used in the packing products. Conveyor belt system carries drugs to and from the packaging machines. In addition, systems such as container forming systems, shrink wrappers and automatic packaging systems are also used. All these equipment needs fastening using bolts and rivets.
Consequently, drills are used to punch through holes for fastening with bolt and rivets while blind openings are tapped to allow fastening with a threaded bolt. Conveyor belt systems and packaging equipment are difficult in nature since they must sort and pack different products with high precision. The complex nature of these parts requires more precision and accurate drilling to agree to precision binding and assembly of the entire equipment.
Application in repair and maintenance
These drills are also used in protection of both production and packaging machines. The repair of worn out parts necessitates the development of a different parts which must be drilled with accuracy. Most drugs developed centers have a divide protection workshop committed to repairing the production equipment. These workshops have drilling tool to perform complicated drilling operations.
Features/Benefits
Equipment authorize us to perform a lot of tasks which we cannot perform using just our human body. Human body is very breakable and performing tasks like defeat surfaces or punching holes in walls is stuff even martial artists can find it extremely hard. This is because humans have restrictions and cannot perform further than a certain limit. This is why they have come up with tools since the limestone Age which has made life much easier, enabling man to start successful the globe. These tools over the centuries have become higher which enables faster and better performance. From the opening of time, man has known the significance of rotary tools. With the help of tools like this, he was able to drive holes through tough surfaces like rocks.
Nowadays, the modern drill machine uses electric power to drill holes. This machine is one of the preferred tools of craftsmen and builders today. Once the building is planned, the craftsmen go instantly to work with these drills and punch holes wherever necessary. Only after this is done, the relax of the work continues. This is how essential a tool is the drilling machine. The drilling machines have two main units. The first is the drill itself although the other is the drill bits. The drill bits are those sharp iron rods which punch holes in solid surfaces. These drill bits come in a diversity of sizes depending on how big the drill has to punch a hole.
The drill machine is a very powerful tool and can be used to do important work without much effort. Though it is a very useful tool, care should be taken while using this machine as it can cause damage to a person if he is not careful. A person should be careful all the time and being in an intoxicated while working with a drilling machine can be very risky. It takes less than a second for the drill to go through flesh while it is much softer than where it is imaginary to be used like existing or walls. No garments or article is supposed to be hanging from a person particularly while using a drill machine.
In no time it can get tangled with the drill causing harm to both object and the person. The drill bits are to be inspected before fitting inside the drill as it can get stuck or without break in the middle of an operation causing unwanted flying debris which could injure a person. Security equipment can be purchased for those who are using drilling machine. A helmet is sure shot way to put off any fragments from falling into the eyes or any part of the face. Another choice is to get a safety glass, which is more compact than the helmet and protects the eyes. Wireless drills are also available, which is much more transportable than ordinary ones. It does not have the problem of wire deficiency to reach places.
Classification of Drilling Machines
Portable Drilling Machine:
It is a small dense drilling machine used principally for drilling operations which can be performed on a standard drill press. The most distorted model of this class is the hand drill. It is equipped with a little electric motor which gives power while working and is particular by the maximum drilling capacity.
Sensitive Drilling Machine:
It is a light, easy, worktable type mechanism for light duty working. It is usually supplied with a resistance drive to give an infinite speed ratio. The horse power is small. 800 to 9000 r.p.m. is a classic range of this machine, with the maximum drilling capacity of 12.5 mm. The major mechanism of this machine is spindle, column, table and the base.
Machines of this type are frequently hand fed and control on the principle of rack and pinion drive. The drill base is counterbalanced and fed from side to side a hand lever system. This agreement allows the worker to feed the force acting on the drill and hence the term ‘sensitive’.
Upright or Column Drilling Machine:
These are comparable to responsive drilling machines, except that they have power feeding mechanism for rotating the drill and are designed for heavier work. Generally these machines have box type column which is more rigid and therefore adapted for heavier work. The table can be given accurate movement by a lead screw and graduated sleeve system.
Radial Drilling Machine:
It is the largest and most flexible of the drilling machines and is very well suited for drilling large number of holes. It is a single spindle machine intended for handling large and heavy work or work which is ahead of the capacity of the small drilling machines. It consists of vertical column with a radial section that can be swung through an arc of 180° or more.
On the radial arm, which is power driven for vertical faction, is a separately driven drilling head equipped with a power feed. The drilling base may be moved along the arm by hand or power on a gear and rack agreement. To drill a whole the following procedure is followed.
Gang Drilling Machine:
Gang drilling machines have two or extra drill heads mounted on the same table. These can be run either concurrently or in sequence. Spindles are wrinkled in a row, driven either physically or by power. Each spindle can be separately set for speed and depth. Such a machine is useful when a work piece is to have more than a few operations performed, such as drilling, counter boring, reaming etc., or for drilling holes of some different sizes.
It is adopted for short runs, where tooling cost of a multi-spindle mechanism is too great. Fast faction of the work from one spindle to another is an important, feature of this machine. The number of spindles is almost unlimited, but the four spindles are the most common. Machines of this type are used for any directly line, multiple hole drilling applications, as in pipes, channels, castings, angles and plates.
Multi-Spindle Drilling Machine
These have been developed for the reason of drilling several holes at the same time. These machines are basically production machines, and once set-up, will drill many parts, with such correctness that all the parts are compatible. Multi-spindle equipment is at variance in the method in which the drills are detained and the way in which feed is proficient.
Normally multi-spindle equipment is of vertical-type. The head meeting has number of fixed upper spindles driven by pinions adjacent a central gear. A matching number of spindles are situated below this gear and are linked to the upper ones by a tubular drive-shaft and two worldwide joints. These, thus can lower the spindles. The drills may be familiar over a wide area.
Vertical Turret Type Drilling Machine:
This machine has a turret which houses various tools such as drill, ream, spot-face, counter bore, tap in any preferred series. The various spindles on this indexing turret can be indexed physically or automatically. These spindles cannot be driven pending they come to the drilling location.
Automatic Drilling Machine:
These are used for high manufacture work. These are built of a number of unit heads with single or multiple spindles in pointed, horizontal or vertical positions in various combinations on a particular base. Indexing table and work investment match at each station are also provided.
Deep-Hole Drilling Machine:
This equipment is used for drilling such holes whose distance end to end exceeds three times the drill size. The examples of this class are rifle barrels, long spindles, connecting rods and convinced oil-well drilling equipment. They are of vertical or horizontal type, single spindle or multi-spindle and may vary as to whether the work or the drill is made to rotate.
