Drill Press

A standard Radial drilling machine tool for drilling is a drill press there are several types of exercise presses, in which the most basic direct drill is,  Direct drill stays on the floor and drill head with a work piece, spindle operated for a drill bit, and a base for support and a table to hold the column. Similar drill press, but small, benches are the exercise, which is mounted on a table or bench in place of the floor.

All Geared Radial Drilling Machine

Radial Exercise, is a huge exercise press to make most of the holes cut. He has a radial hand over with which drilling head is stimulated and clamped. Therefore, the head can be positioned on hand in places with considerable distance from the column for most operations. The radial box can be swiveled on the column to either exercise on both parts of the worktable.

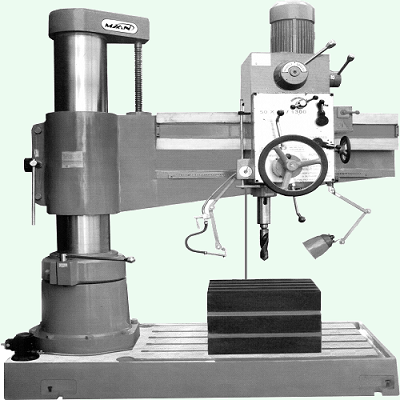

Radial Drilling Machine

The Radial drilling machine is mostly used for exact depths of the a variety of holes of the objects and the surface of the object. In addition, the drilling machine can do other tasks such as tapping, rimming, counter-sink, spot facing, countersinking, etc. It is commonly known as a drill press and as the ability to use very small pores and very large pores. The drilling machine is measured as very early and most necessary machine tools. Numerous varieties of drilling machines are now available in production and are readily available in the market; All drilling machines, including radial drilling machines, actually operate the same basic drilling work.

However, there are certain specific operations that can be done very accurately through specific drilling machines. It is used in many manufacturing processes and especially in the construction industry. They have been designed to complete numerous engineering tasks related to the operational and specific requirements. Spindling cooling system and power feed radial drilling machines have common characteristics.



Best Radial Drilling Machine Manufacturer in India

There are a bunch of Radial Drilling Machine Manufacturer Companies in India. here a comparison of some the companies Model vise Specifications that helps you to know which one is the best? Our main goal is to serve up the family as well as an international market by providing top quality machines in various specifications.

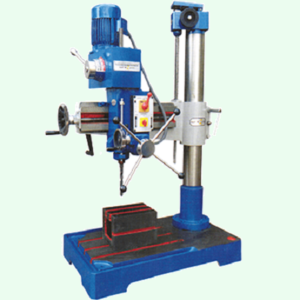

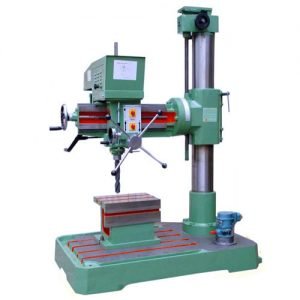

Parmar Drill Radial Drilling Machines

Features:

• Main Spindle is made of “EN8” material and hardness
• MT-bore internally grinded
• Precision and run out of 0.01 to 0.03 in the main spindle shaft
• Provided 4-8 speeds by accurate balancing
• Spindle sleeve-grinded
• Work light[As per requirement]
• Full-scale work table with correct right-angled.[390X300][Surface Grinding is available as per your required]
• Tapper Roller capability for better descending of drill head an arm guide
• Coolant system [As per requirement]
• Speeds can easily change
• All gears are completed of alloy steel[Gear Material] and Heat management [50 to 60 HRC] hardened & Lapped running in oil bath fitted with splined shafts
• All the gears assemble in the machine are perfectly sized according to a requirement
  All Bearing [SKF/NSK[Japan]/NBC Bearing]
• All Electrical parts are good quality.[Company: L&T]
• Pinion and worm is grinded as per the sizes required
• Column Design is heavy width and grinded as per the sizes necessary [column size:180mm]
• Spindle reverse and tapping control[As per your required]
• Especially spring type balanced spindle travel
• Manual And Auto feed options
• The Auto feed machinery is designed in such a behavior that if in case the machine gets overloaded or the drill bit may get locked during process the mechanism will mechanically start slipping that will put off any accident or any kind of damages
• Drilling last capacity: 40mm
• Heavy Duty structures
• Powerfully ribbed and a thick-walled base plate having built-in coolant tank.
  kindly Proportional & Well adequately ribbed base plates and column & arm for maximum rigidity and minimum deflection
• This machine may be capable of drilling & milling & tapping & honing & counter-boring & spot facing & Reaming & boring and other similar utilities.
  Arm guide surface is precision scraping process
• Wooden case available on demand



Batliboi Radial Drilling Machines

Features:

• Arm, column & base tightly built with strengthening ribs to reduce distortion and give long life
• Heavy-duty – 75 mm drilling in rock-solid steel
• Pre-selection of spindle speeds
• Electro-hydraulic clamping for drill head and upper limb twist
• Special spindle bearing arrangement for rough boring
• Quill and spindle assembly balanced by the guided counterweight
• Automatic lubrication of drill head and arm
• Automatic clamping / de clamping of an arm for up and down movement
• A wide range of speeds and feeds
• Automatic disconnection of power feed at required depth of drilling



HMT Radial Drilling Machines

Features:

• Massive and rigid construction.
• Ergonomically grouped controls for operating convenience.
• Light centering of a spindle.
• Precise depth release.
• Electro hydraulic clamping provided for drill head, division & sleeve.
• Shock-free appointment of taps through clutch and spindle reverse for withdrawals.
• A mechanism with drilling capacity 80 mm / 100 mm also accessible.



Siddhapura Radial Drilling Machines

Features:

• Drilling (M.S)-50mm
• Spindle Tapper-My-5
• Power Supply-3ph,415v,50hz
• Distance From Column To Spindle Max/Min.-1210/400
• Overall Dimensions(L X W X H)-1800 X 1000 X 2450
• Approximate Weight-2500kg
• Box Table Area(Lxwxh)-600 X 500 X 500

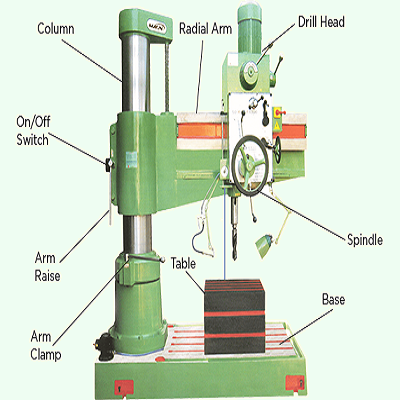

Components of Radial Drilling Machine

1. Columns – measurement of the radial hand drill press, which has a radial arm that can be moved according to its length
2. Arm Rise – position the vertical height of the radial bounds with the column
3. On / Off Button – is the switch that activates the drill press and disables it
4. Arm clamp – hand in column and place
5. Table – The place where Workspace is given and it works
6. Base – Radial hand drill is a push section that supports columns and tables
7. Spindle – Drill is a rotating part of the press that holds the cutting tool used in holding the cutting tool
8. Drill Head – The part of the drill press that penetrates through the material or work piece and drills through a special hole size
9. Radial Arm – Drill Head holds an congregation and supports it and is moved to its length level

There are many remuneration to using radial hand drill press. One of these advantages is the amount of the area that it can cover, which is based only on the length of the hand. Another advantage is a significant size of the work that it can handle because the hand actually allows Kearney and Derrick to place a workspace on the table from the work area. Finally, less effort is required during the drilling process because all of the functions required for specific functions to complete hand assembly enzymes are to be done.



Types of Drilling Machine

Here 8 different types of the drilling machine.

1. Portable drilling machine
2. sensitive drilling machine
   1. Bench mounting sensitive drilling machine
   2. Floor column upright drilling machine
3. Upright drilling machine
   1. Round column upright drilling machine
   2. Box column upright drilling machine
4. Radial drilling machine
   1. Plain drilling machine
   2. Universal drilling machine
   3. semi-universal drilling machine
5. gang drilling machine
6. Multiple spindle machine
7. Automatic drilling machine
8. Deep hole drilling machine
   1. Vertical deep hole drilling machine
   2. Horizontal deep hole drilling machine



1. Portable Drilling Machine

These types of drilling equipment are commonly used in the entire workshop. Used to drill small sized holes. It is operated by holding in a hand. The work piece where the hole is to be drilled is held in a vice.



2. Sensitive Drilling Machine

These types of drilling mechanism are used to drill little holes at high speeds in lighter jobs or work pieces. The machine may be mounted on the bench or floor & the drilling work is in progress with the drill fed into the work piece by simply hand control.

Hand over feed permits the worker to sense the progress of the drill into the work piece, so that if there is any drill worn out or jams it may be free right away to prevent the drill bit from breaking.

Since the worker senses the cutting achievement at any immediate it is called as the sensitive drilling machine. This equipment is capable of drilling small holes of width as small as 0.35 mm to 15 mm. These equipment run at the higher speed as high as 2000 rpm.



3. Upright Drilling Machine

It is bigger in size and stronger than responsive drilling machine. It is used for drilling intermediate and large sized holes. Based on the type of column used it is confidential as a round column and box column upright drilling machines.

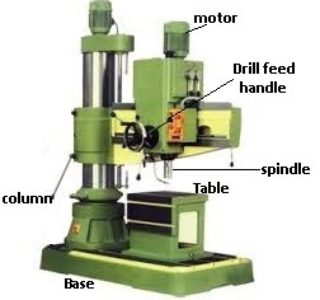

4. Radial Drilling Machine

The schematic diagram of the radial drilling machine is shown in the shape. It considers by the base, column radial arm, drill head, spindle speed and feed mechanism.

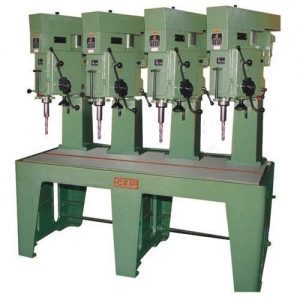

5. Gang Drilling Machine

This mechanism consists of the number of drill heads located side by side so that more than one hole of same or different sizes can be drilled at a time on the same job or on different jobs.

The space between drill spindles is varied to suit the gap between the holes. This type of machine tool is used to drill a large number of holes on the same job at a faster rate.

The main advantage of this type of machine tool is that the series of operation can be performed with different spindle mounted with different tool bits on the same workpiece by moving it from one position to another position.

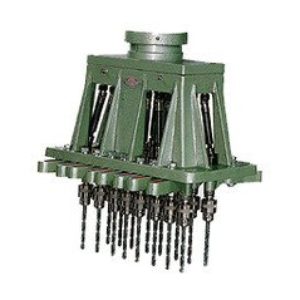

6. Multi Spindle Drilling Machine

This mechanism tool is comparable to a gang drilling machine in building. It is used to drill the number of hole in the same work piece simultaneously and to reproduce the same work in a number of similar jobs.

The entire spindle are driven by the single motor and fed continuously. During the feeding table with the work piece is raised or lowered and drill head position is not varied.



7. Automatic Drilling Machine

These types of equipment can perform a series of machining operations at successive units and transport the work from one unit to the other automatically.

One time the work is overloaded at the first machine, the work will move from one machine to the other where different operations can be performed and the absolute work comes out from the last unit without any physical handling.

These types of mechanism are proposed purely for production purposes and may be used for milling, honing and similar operations in addition to drilling and tapping.



8. Deep Hole Drilling Machine

These may be also horizontal or vertical type of machine. In this drilling machine, the part to be drilled is rotated and the drill bit that makes the hole is kept stationary. Deep hole drilling is done in components like rifle barrels, crankshafts, long shafts etc.
